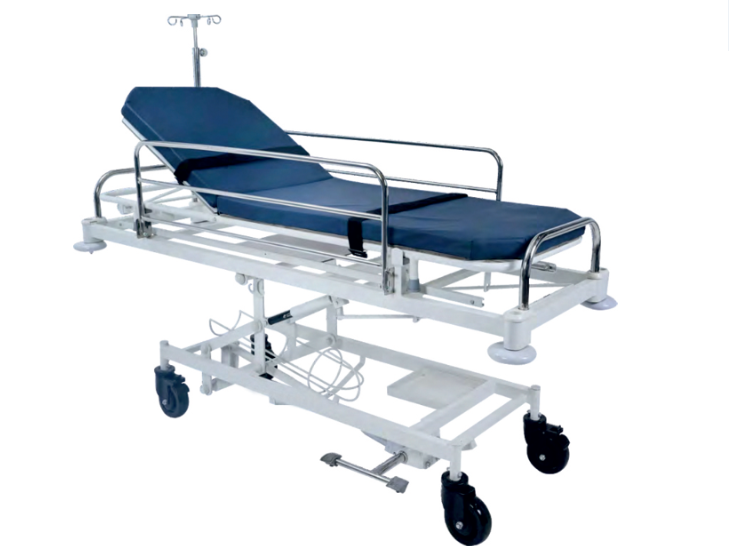

Emergency & Recovery Trolley (Hydraulic)

BRAND: CareMob
MODEL: CAREMOB-30
Description:
  • Tubular M.S. Framework, foot operated hydraulic pump for height adjustment
  • Smooth Pneumatic mechanism to obtain Trendelenburg and Reverse Trendelenburg positions
  • Removable two section X-Ray permeable top with Head Raise on Ratchet Mechanism
  • Trolley Mounted on 125mm (5") diagonal locking castors
  • Provided with Oxygen Cylinder Cage, Sliding X-ray Cassette holder, SS drop down safety side railings, SS telescopic I.V. Rod with 4 hooks, Utility Tray and Suitable Mattress of 50 mm (2")
  • Finish: Pretreated and Epoxy powder coated

Full Body X-Ray Top with Sliding Cassette Holder

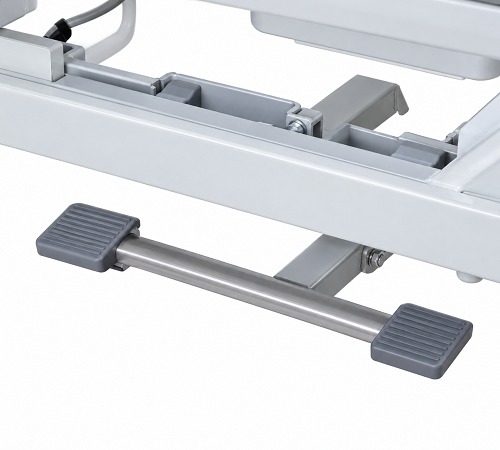

Single Side Foot Operated Pedal for Hi-Lo

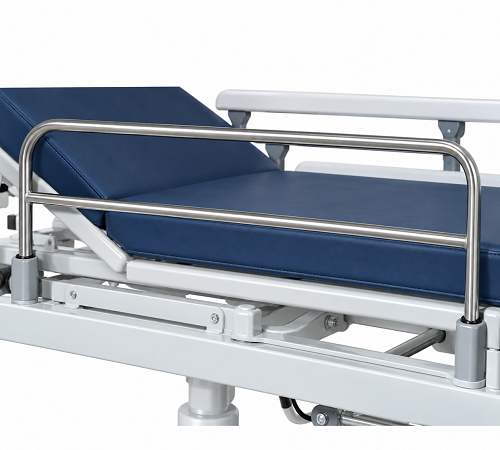

Swing Away SS Railings

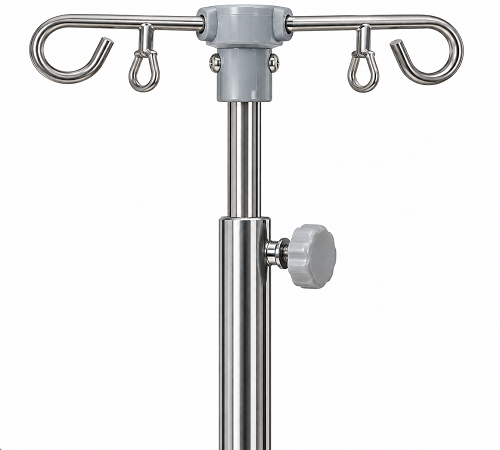

IV Rod

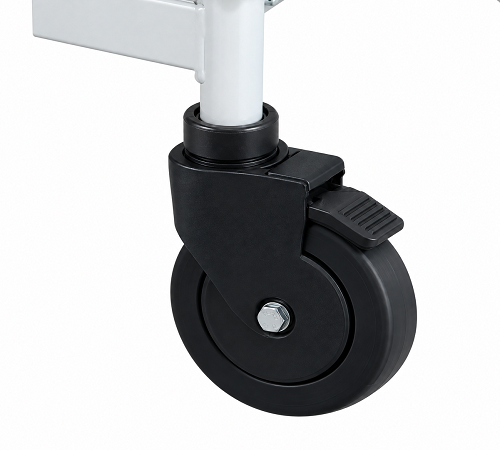

5" Diagonal Locking Casters

Technical Specifications:
Overall Dimensions (L x W)* 2040 x 710 mm (Buffer to Buffer)
Mattress Platform Dimensions (L x W)* 1800 x 605 mm
Backrest** 80°
Trendelenburg** 23°
Reverse Trendelenburg** 9°
Height (w/o Mattress)* 690-960 mm
Safe Working Load 170 kgs
Patient Weight Bearing Capacity 150 kgs
Castors 150 mm Diagonal
Standard Fittings:
  • Oxygen Cylinder Cage
  • Sliding X-Ray Cassette Holder
  • SS Drop Down Safety Side Railings
  • SS Telescopic I.V. Rod (4 Hooks)
  • Utility Tray
  • Mattress 50 mm (2")
Ideal For:
  • Emergency Department
  • Radiology Department
  • Operation Theatre
  • Patient Transfer
  • ICU/CCU
  • Ambulance Area
  • Recovery Room
  • Trauma Centre
